⚠️ Important Notice: This document contains only capabilities and configurations verified against official Microsoft documentation as of May 2026. Features marked “Preview” may change before general availability. Always test in a non-production environment first.

Deploying Microsoft 365 Copilot, custom Copilot Studio agents, and external plugins introduces autonomous actors that can access, process, and act upon corporate data at machine speed. To safely scale these solutions, organizations need a layered governance framework across four control planes: Microsoft Entra ID (Identity), Microsoft Purview (Data), Microsoft Defender for Cloud Apps (Runtime), and SharePoint Advanced Management (Content).

This guide provides a verified, operational framework with official Microsoft documentation references for each capability.

Key Outcomes:

• ✅ Prevent unauthorized data exposure via AI agents using verified DLP and access controls
• ✅ Maintain regulatory compliance with documented governance patterns
• ✅ Enable secure external data integration via Model Context Protocol (MCP) with AI Gateway
• ✅ Establish audit trails for all AI-driven actions using native Microsoft logging
• ✅ Reduce risk through defense-in-depth architecture with validated controls

1. Licensing & Prerequisites

Before implementing governance controls, verify your organization has the required licenses. Missing licenses will silently fail to enforce policies.

Prerequisite Checklist:

• Global Admin or Security Admin role assigned
• Microsoft 365 Copilot licenses assigned to pilot users [[75]]
• Entra ID P2 trial enabled if not licensed (for advanced CA features) [[53]]
• Purview compliance portal access granted to compliance team [[12]]
• SharePoint Admin Center access for SAM configuration [[28]]
• Azure API Management instance provisioned for MCP governance (if using external connectors) [[41]]

2. Microsoft Entra ID: Identity-Centric Agent Governance

Before an agent can act, it must be authenticated and authorized. Entra ID treats AI agents as first-class identities, separate from standard user or application identities, allowing for highly granular access control.

2.1 Verified Capabilities

2.2 Verified Configuration Steps

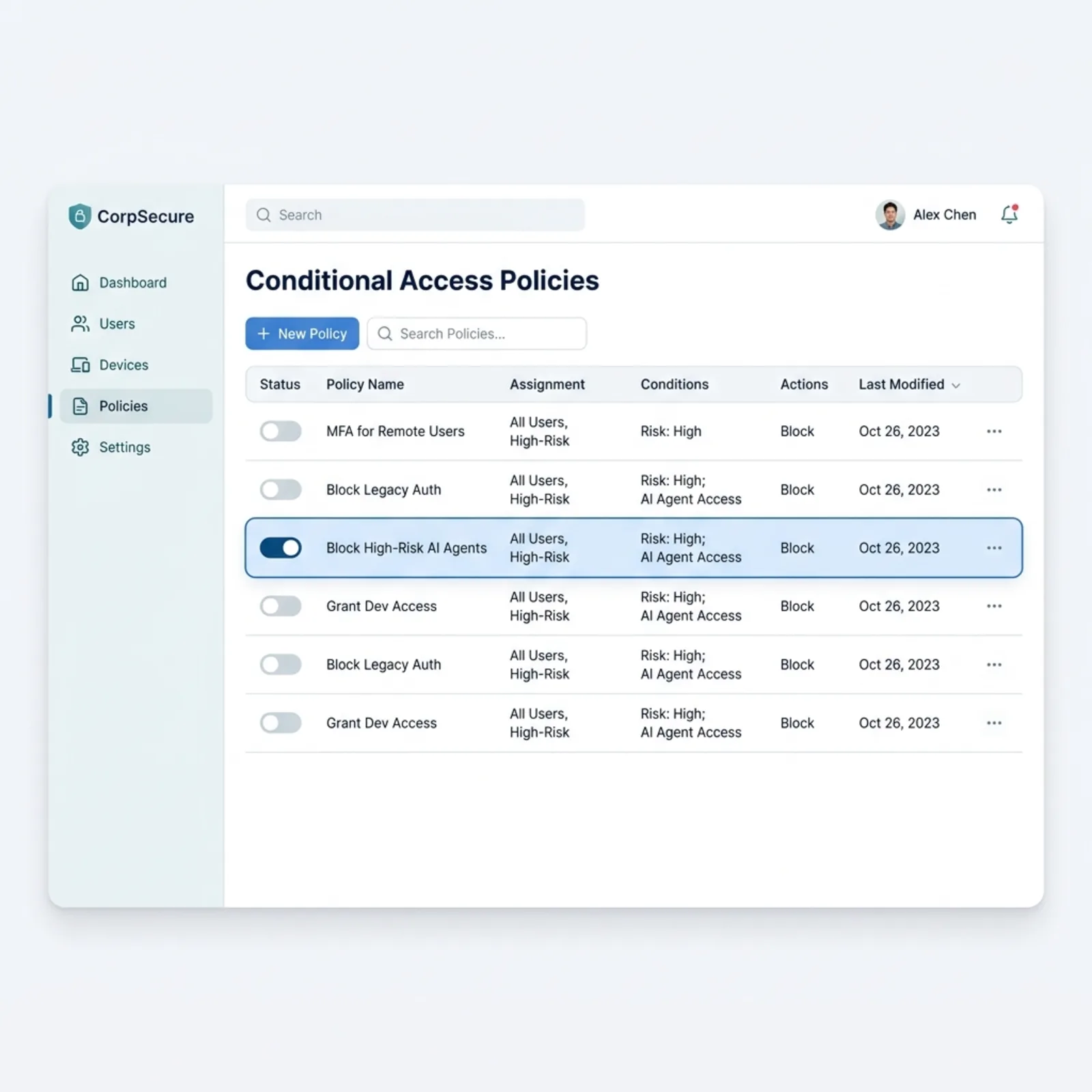

Create Conditional Access Policy for Agent Identities [[53]]

Apply Custom Security Attributes for Scalable Targeting [[56]]

Audit Agent Activity via Sign-in Logs [[53]]

// Filter Entra sign-in logs for agent activity
SigninLogs
| where agentType is not null
| project TimeGenerated, UserPrincipalName, agentType, appId, resourceName, status
| sort by TimeGenerated desc

Pro Tip: Block restricted agents from accessing external MCP servers based on network compliance. Use the RequiresExternalAccess custom attribute to build a Conditional Access policy that only permits outbound connections to approved MCP endpoints when that specific attribute is present.

2.3 Known Limitations

2.4 Compliance Mapping

3. Microsoft Purview: Context-Aware Data Protection

While Entra controls who (or what) gets in, Purview controls what data is allowed to leave or be processed. Copilot interactions require specialized Data Loss Prevention (DLP) logic.

3.1 Verified Capabilities

3.2 Critical Limitations (Verified)

3.3 Verified Configuration Steps

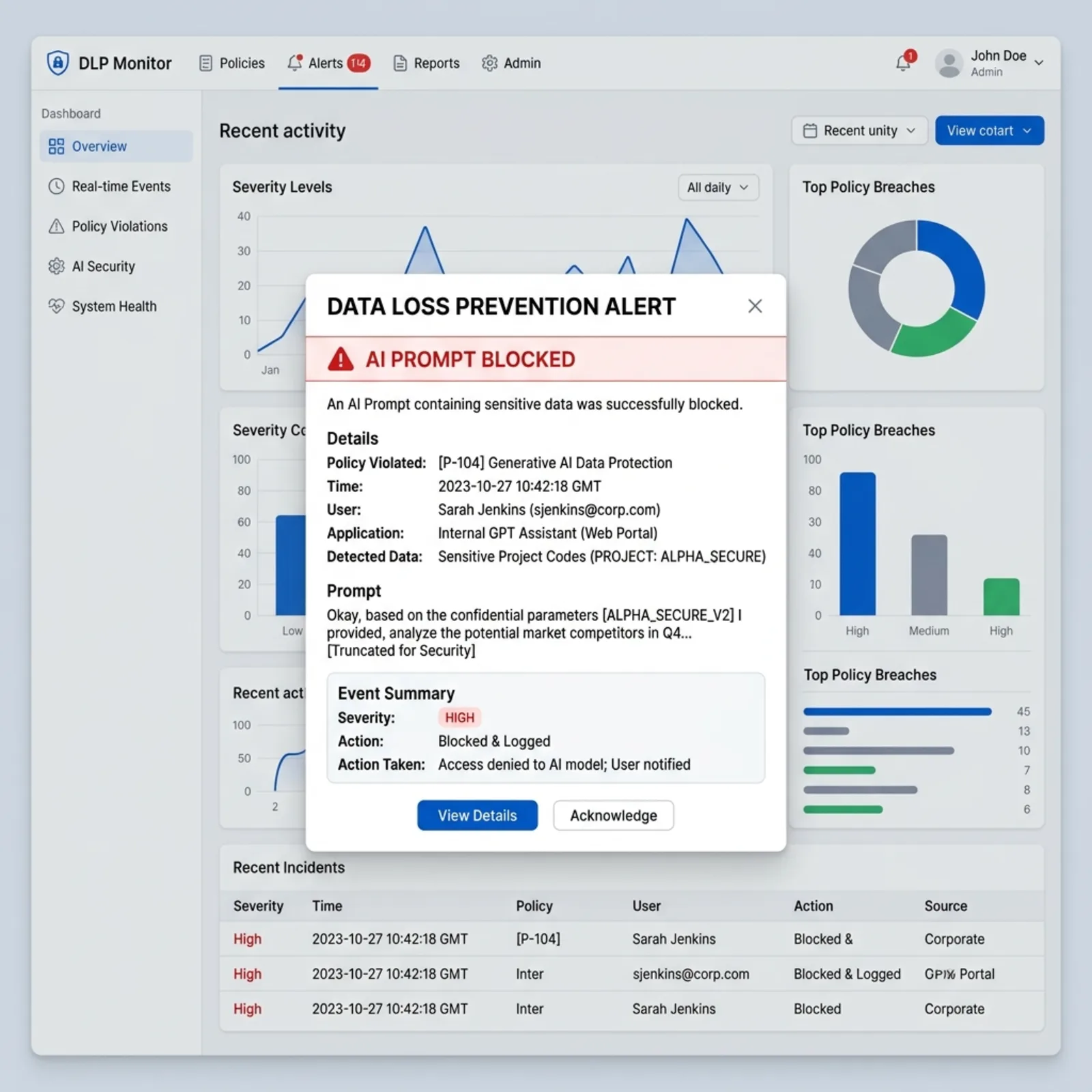

Create DLP Policy for Copilot Prompts [[12]]

1. Navigate to: Microsoft Purview Portal → Data loss prevention → Policies → Create policy
2. Category: Custom
3. Name: "Block Sensitive Prompts in Copilot"
4. Locations: Select "Microsoft 365 Copilot and Copilot Chat" ONLY
   - ⚠️ Do NOT select Exchange/SharePoint/OneDrive in same rule
5. Click "Next"
6. Create Rule #1 - Block Sensitive Info Types (Preview):
   - Name: "Block PII in Prompts"
   - Condition: Content contains → Sensitive information types
   - Select: U.S. Social Security Number, Credit Card Number, etc.
   - Action: Prevent Copilot from processing content → Processing prompts
   - Optional: Send incident report, show policy tip
7. Click "+ Add rule" for Rule #2 - Block Sensitivity Labels (GA):
   - Name: "Block Highly Confidential Files"
   - Condition: Content contains → Sensitivity labels
   - Select: "Highly Confidential", "Regulatory"
   - Action: Prevent Copilot from processing content
8. Policy Settings:
   - Mode: Start in "Test with policy tips" or "Simulation" for 2 weeks
9. Click "Submit" → Review → Create

Testing: Always deploy in simulation mode first to capture matches and tune out false positives before activating.

3.4 Compliance Mapping

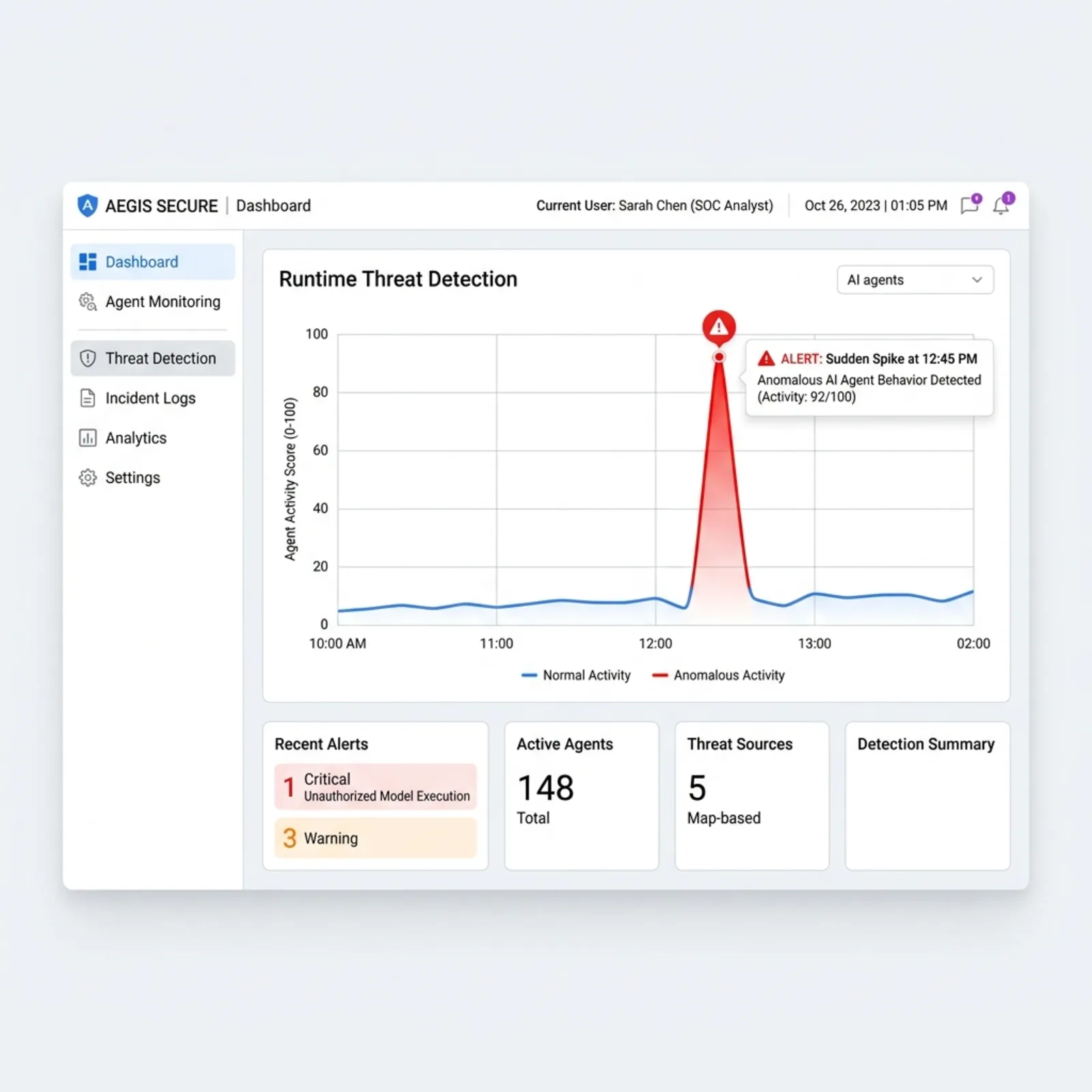

4. Microsoft Defender for Cloud Apps: Runtime Threat Intelligence

Governance does not stop at access. You must monitor what agents are doing in real-time. Defender for Cloud Apps acts as the runtime security layer for your Copilot Studio agents and OAuth plugins.

4.1 Verified Capabilities

4.2 Verified Configuration Steps

Enable AI Agent Protection (Preview) [[26]]

Configure Anomaly Detection Rules [[26]]

Integrate with Microsoft Sentinel (Optional)

Pro Tip: Integrate Defender alerts directly with Microsoft Sentinel for centralized incident response and automated playbook execution.

4.3 Known Limitations

4.4 Compliance Mapping

5. SharePoint Advanced Management: Proactive Content Governance

AI does not bypass your permissions — it amplifies them. If a site is overshared, Copilot will find it and surface it. SharePoint Advanced Management (SAM) is essential for fixing the root cause before Copilot deployment amplifies the risk.

5.1 Verified Capabilities

Crucial Reality: Copilot respects existing permissions. SAM tools are absolutely necessary to remediate oversharing before Copilot deployment amplifies the risk. Schedule attestation workflows by tying quarterly site reviews directly to your plugin recertification cycles.

5.2 Critical Limitations (Verified)

5.3 Verified Configuration Steps

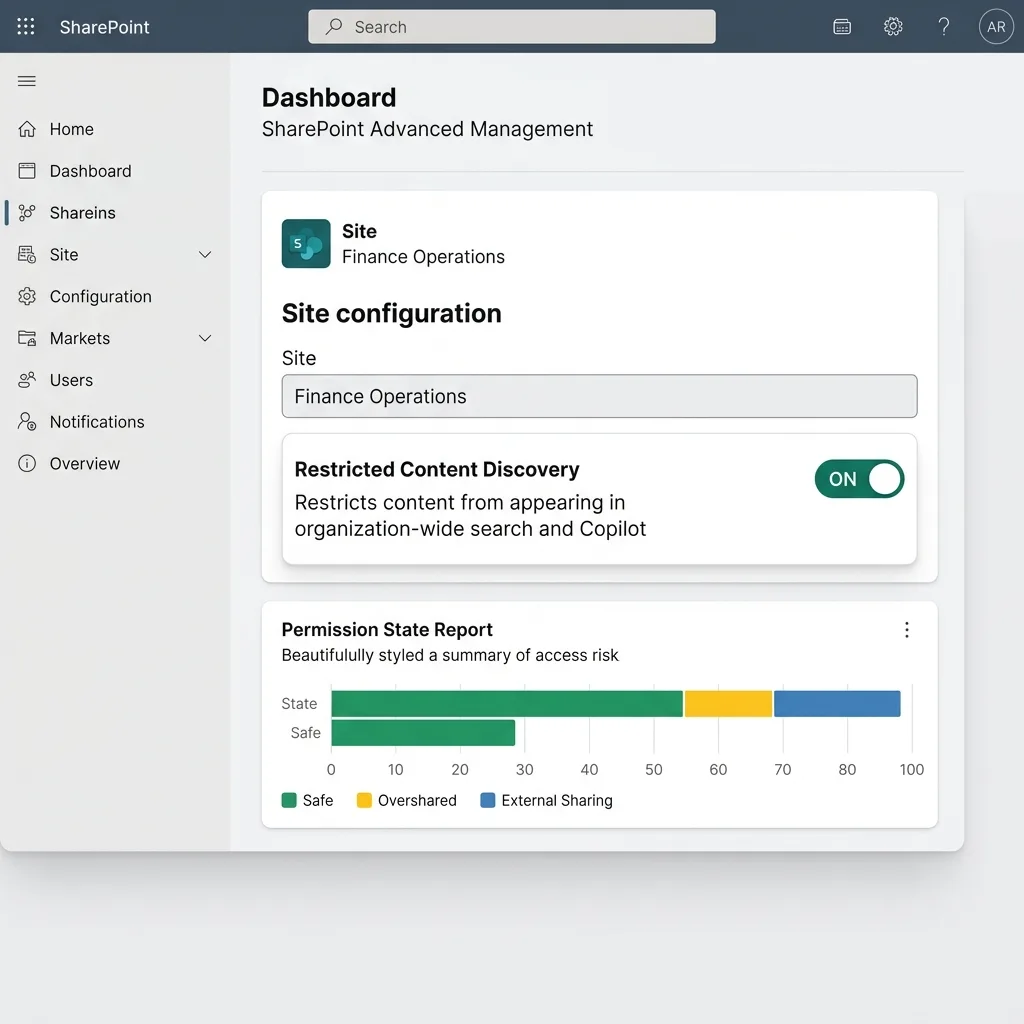

Enable Restricted Content Discovery (RCD) [[28]]

Option A: SharePoint Admin Center (UI)

Option B: PowerShell

# Connect to SharePoint Online
Connect-SPOService -Url https://contoso-admin.sharepoint.com

# Enable RCD for a specific site
Set-SPOSite -identity "https://contoso.sharepoint.com/sites/Finance" -RestrictContentOrgWideSearch $true

# Verify status
Get-SPOSite -identity "https://contoso.sharepoint.com/sites/Finance" | Select RestrictContentOrgWideSearch

Run Permission State Report (Pre-Copilot Remediation) [[93]]

5.4 Compliance Mapping

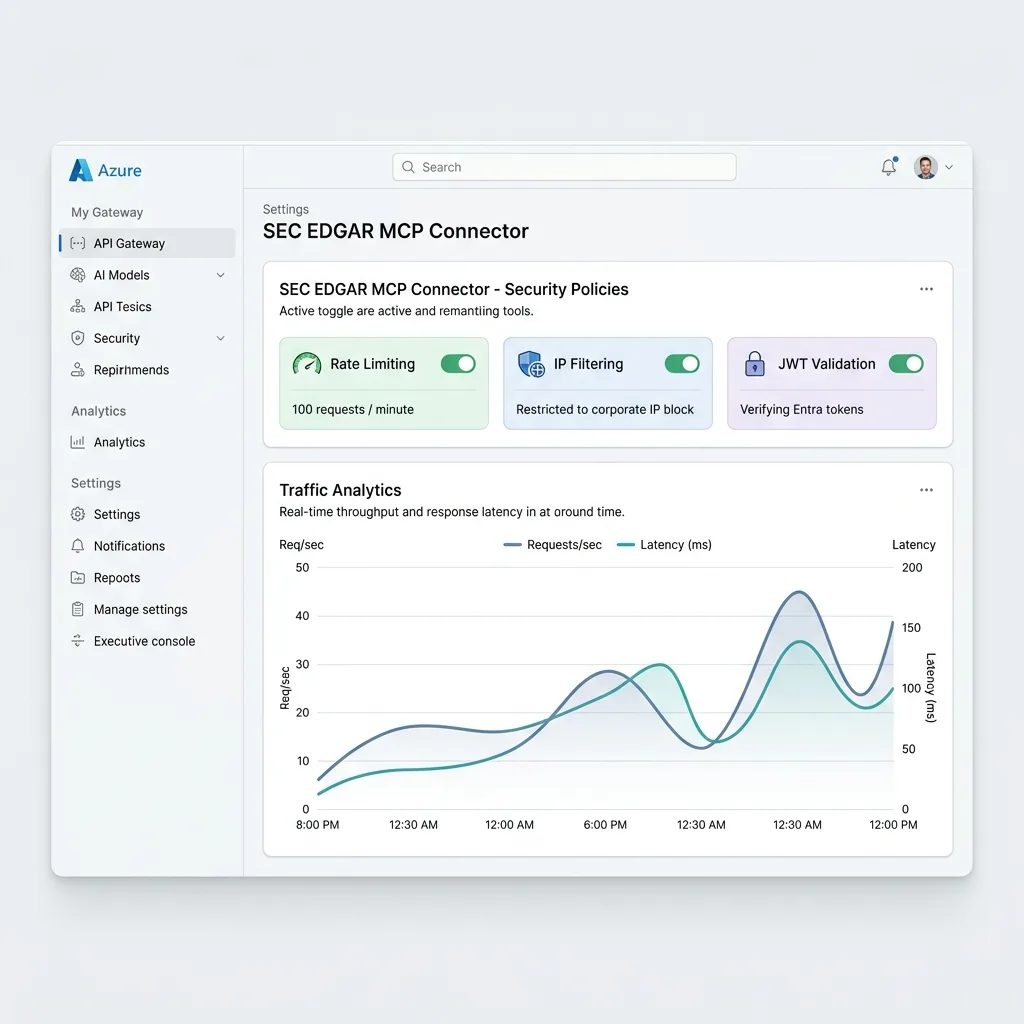

6. MCP Governance via AI Gateway: Securing External Data Connectors

6.1 Verified Capabilities

6.2 Verified Configuration Steps

Connect AI Gateway to Microsoft Foundry [[41]]

Create New MCP Tool with Governance [[41]]

Advanced Cross-Pillar Pattern: Combine Entra Agent IDs with MCP Governance for precise endpoint routing. Tag a plugin blueprint in Entra with RequiresExternalAccess: SEC_EDGAR (custom security attribute), then build a Conditional Access policy that only permits outbound connections to approved MCP endpoints when that specific attribute is present. This prevents any agent without the explicit attribute from reaching external data connectors — even if they discover the endpoint URL.

6.3 Known Limitations

6.4 Compliance Mapping

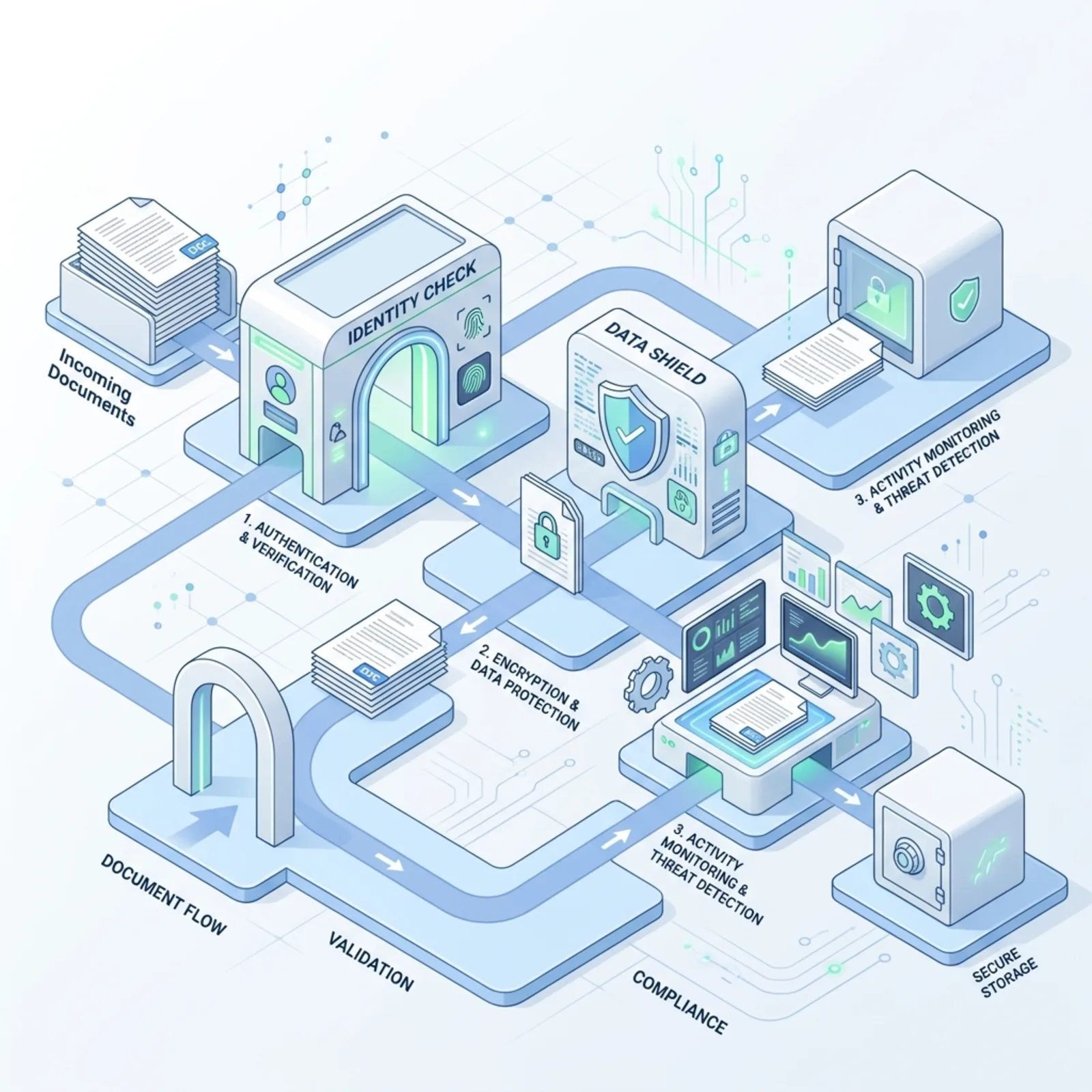

7. Cross-Platform Orchestration Architecture

To visualize how these four control planes interact during a single user request, consider this cross-platform orchestration flow from invocation to execution:

┌─────────────────────────────────────────────────────────────────┐
│                    User Invokes Copilot Plugin                  │
│              "Perform financial research on Microsoft"           │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│  1. ENTRA ID: Identity & Risk Assessment [[53]]                 │
│     ✓ Validate agent identity via Conditional Access policy     │
│     ✓ Check custom security attributes for policy targeting     │
│     ✓ Evaluate Identity Protection risk signals                 │
│     ✓ Verify network location compliance                        │
│                                                                 │
│     Decision: ALLOW → Continue | BLOCK → Return error           │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│  2. PURVIEW: Prompt & Content Validation [[12]]                 │
│     ✓ Scan prompt for Sensitive Information Types (Preview)     │
│     ✓ Check sensitivity labels on target files (GA)             │
│     ✓ Evaluate web search grounding eligibility (Preview)       │
│     ✓ Apply DLP policy: Block/Allow/Notify                      │
│                                                                 │
│     Decision: ALLOW → Continue | BLOCK → Show policy tip        │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│  3. SHAREPOINT: Content Access Control [[28]]                   │
│     ✓ Verify user has permission to target sites                │
│     ✓ Check Restricted Content Discovery (RCD) rules            │
│     ✓ Validate recent interaction window (default: 30 days)     │
│     ✓ Enforce Block Download Policies on sensitive libraries     │
│                                                                 │
│     Decision: ALLOW → Continue | RESTRICT → Hide from search    │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│  4. MCP GATEWAY: External Data Access (if required) [[41]]      │
│     ✓ Verify agent has RequiresExternalAccess attribute         │
│     ✓ Route MCP traffic through AI Gateway (APIM)               │
│     ✓ Apply policies: rate limiting, IP filtering, JWT          │
│     ✓ Log data flow for audit                                   │
│                                                                 │
│     Decision: ALLOW → Fetch data | BLOCK → Return error         │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│  5. DEFENDER: Runtime Monitoring [[26]]                         │
│     ✓ Monitor for anomalous agent behavior (Preview)            │
│     ✓ Detect unusual API call patterns or data volumes          │
│     ✓ Shadow AI discovery: flag unauthorized plugin activity    │
│     ✓ Trigger alerts or automated responses if thresholds met   │
│                                                                 │
│     Action: LOG → Continue | ALERT → Notify SOC                 │
└────────────────────────┬────────────────────────────────────────┘
                         │
                         ▼
┌─────────────────────────────────────────────────────────────────┐
│              Response Delivered to User                         │
│     ✓ Audit events logged to native Microsoft platforms         │
│     ✓ No additional third-party logging required                │
└─────────────────────────────────────────────────────────────────┘

Key Architectural Takeaways

1. Fix Data Governance First: Implement SharePoint Advanced Management to resolve oversharing before enabling broad AI access.
2. Layer Your Defenses: Relying on a single platform is a failure point. Entra ID dictates who, Purview restricts what, Defender monitors how, and SharePoint protects where.
3. Test in Simulation: Always test policies in simulation/report-only mode to prevent user disruption and tune false positives.
4. Schedule Continuous Reviews: AI plugins will evolve rapidly. Governance is an iterative lifecycle, not a one-time deployment task.
5. Document Elevated Exceptions: Maintain rigorous documentation for any agents requiring elevated exceptions — including business justification, approver, and expiry date.
6. Combine Entra Agent IDs with Purview DLP: Combine signals for precise MCP endpoint routing. Tag a plugin blueprint with RequiresMCP: SEC_EDGAR, and build a CA policy that only permits outbound connections to approved MCP endpoints when that specific attribute is present.

8. Implementation Checklist: Verified Steps

Phase 1: Prerequisites Verification (Week 1)

• Licensing Confirmation

  • Microsoft 365 Copilot licenses assigned to pilot users [[75]]
  • Entra ID P1/P2 confirmed for Conditional Access features [[53]]
  • SharePoint Advanced Management license verified for RCD [[93]]
  • Purview compliance portal access granted [[12]]
  • Azure API Management instance provisioned (if using MCP) [[41]]

• Access & Permissions

  • Global Admin or Security Admin role assigned
  • Purview compliance admin role for DLP policy creation [[12]]
  • SharePoint Admin Center access for SAM configuration [[28]]

Phase 2: Core Controls Deployment (Weeks 2-3)

Phase 3: Validation & Testing (Week 4)

• DLP Policy Validation [[12]]

  • Test prompt with synthetic SSN: “My SSN is 123-45-6789, summarize this”
  • Expected: Copilot blocked from processing; policy tip shown
  • Verify event in Purview audit logs

• RCD Validation [[28]]

  • Search for restricted site content in Copilot
  • Expected: Content hidden unless user had recent interaction
  • Verify direct access still works for authorized users

• Conditional Access Validation [[53]]

  • Review Entra sign-in logs filtered by agentType
  • Verify policy blocks/highlights as configured
  • Test with pilot user group first

• MCP Gateway Validation (if applicable) [[41]]

  • Invoke agent using new MCP tool
  • Verify traffic appears in Azure API Management analytics
  • Confirm applied policies (rate limiting, etc.) are enforced

Phase 4: Go-Live & Monitoring (Week 5+)

• Policy Activation

  • Change Purview DLP mode: Test → On
  • Change Entra CA mode: Report-only → On
  • Document activation timestamp for audit

• Monitoring Setup

  • Review native logs: Entra sign-in logs, Purview audit, Defender alerts
  • Optional: Stream to Sentinel for centralized monitoring
  • Set up alerts for critical events (e.g., high-risk agent sign-ins)

• User Communication

  • Notify pilot users of active governance policies
  • Provide examples of DLP policy tips they may see
  • Share escalation path for false positives

• Ongoing Maintenance

  • Quarterly: Review OAuth permissions via Defender [[25]]
  • Quarterly: Run SharePoint Permission State reports [[93]]
  • Monthly: Review DLP policy matches and tune false positives [[12]]
  • As needed: Update Conditional Access policies for new agent types [[53]]

• Documentation

  • Document all agents requiring elevated exceptions (business justification, approver, expiry)
  • Maintain change log for policy modifications
  • Schedule next review aligned with plugin recertification cycle

9. Compliance Mapping Framework

9.1 GDPR Compliance

9.2 HIPAA Compliance

9.3 SOC 2 Type II

10. Monitoring, Validation & Troubleshooting

10.1 Verified Monitoring Approaches

10.2 Verified Troubleshooting Guide

10.3 Validation Checklist

• DLP Testing [[12]]

  • Prompt with synthetic SSN blocked as expected
  • Prompt with credit card number blocked as expected
  • Policy tip displayed to user (if configured)
  • Event appears in Purview audit logs
  • Prompt Injection Pentesting: Attempt prompt injection attacks using synthetic sensitive data (e.g., fake SSNs, mock PII) to validate Purview DLP triggers and confirm no bypass vectors exist

• RCD Testing [[28]]

  • Restricted site content hidden from Copilot search
  • Same content accessible via direct URL for authorized users
  • Recent interaction (within 30 days) bypasses RCD as expected

• Conditional Access Testing [[53]]

  • Agent sign-in logs show policy evaluation
  • High-risk agent blocked or challenged per policy
  • Custom attributes correctly filter policy application

• MCP Gateway Testing (if applicable) [[41]]

  • New MCP tool traffic appears in APIM analytics
  • Applied policies (rate limiting, etc.) enforced
  • Authentication method working as configured

• Security Exercises

  • Tabletop Exercise: Run a SOC scenario based on a compromised plugin. Walk through the exact containment steps: How does the team isolate the tenant, suspend the agent session, revoke OAuth tokens, and notify stakeholders? Document the runbook outcome.
  • SIEM Validation: Confirm that Purview Audit (Premium) logs and Entra Agent ID sign-ins are successfully flowing into Sentinel (or your SIEM of choice)

11. Appendix: Official Documentation References

Primary Sources

1. Microsoft 365 Copilot Foundational Deployment Guidance https://learn.microsoft.com/en-us/microsoft-365/copilot/secure-govern-copilot-foundational-deployment-guidance [[75]]

2. Purview DLP for Microsoft 365 Copilot https://learn.microsoft.com/en-us/purview/dlp-microsoft365-copilot-location-learn-about [[12]]

3. Defender for Cloud Apps: AI Agent Protection https://learn.microsoft.com/en-us/defender-cloud-apps/ai-agent-protection [[25]] https://learn.microsoft.com/en-us/defender-cloud-apps/ai-agent-protection-configure [[26]]

4. SharePoint Restricted Content Discovery https://learn.microsoft.com/en-us/sharepoint/restricted-content-discovery [[28]]

5. SharePoint Advanced Management Overview https://learn.microsoft.com/en-us/sharepoint/advanced-management [[93]]

6. Entra ID: Conditional Access for Agent Identities https://learn.microsoft.com/en-us/entra/identity/conditional-access/agent-id [[53]]

7. Entra ID: Custom Security Attributes Overview https://learn.microsoft.com/en-us/entra/fundamentals/custom-security-attributes-overview [[56]]

8. Azure AI Foundry: MCP Tool Governance via AI Gateway https://learn.microsoft.com/en-us/azure/foundry/agents/how-to/tools/governance [[41]]

Supporting Documentation

9. Purview DLP General Concepts https://learn.microsoft.com/en-us/purview/dlp-learn-about-dlp [[78]]

10. Entra ID Sign-in Logs Reference https://learn.microsoft.com/en-us/entra/identity/monitoring-health/reference-sign-ins-schema

11. Azure API Management Policies https://learn.microsoft.com/en-us/azure/api-management/api-management-howto-policies
